Pioneer Pump - PP88S12
Pioneer Pump - PP88S12
This sound attenuated pump package is ideal for residential areas and other locations requiring low sound levels. The versatile pump is highly utilized in our fleet for contract work, rentals, and emergency response.
Features
Infinite run-dry capability
Environmentally safe priming sytem
Automation is ready with transducer, float, and flowmeter connections.
GPS and Telematic Enabled
Engine Specifications
Engine Type
4 Cylinder, 4-Cycle, Liquid Cooled Diesel
Operating Time
24 hours (full load)
4.5 L
Displacement
Fuel Consumption
5.6 gph @ Full Load
Continuous Horsepower
113 HP @ 1,800 RPM
RPM Operating Range
900 RPM -1,800 RPM
Pioneer Pump - PP88S12 - Sound Attenuated
Pump Model
Diesel-Driven Trash Type
Pump Package
8“
Discharge Size
12.25”
Impeller Size
Fuel Capacity
135 Gallon
John Deere 4045 - FT4 & T3
Engine Model
Murphy MPC-20
Control Panel
Pump Specifications
8“
Suction Size
Max Flow
5,050 GPM
Max Head
175’
Solid Handling Size
3”
Trailer Brake Type
Surge
CA6NM Stainless Steel
Impeller Material
Diaphram Style Vacuum
Priming System
50 CFM
Priming System Output
Swing Type - Ductile Iron with Buna-n Disc
Discharge Check Valve
67 dBa @ 23'
Noise Level at full load
1,200 RPM - 1,800 RPM
RPM Stable Operating Range
Performance Curve
MODEL: PP88S12
Solids Size: 3”
Curve #20642HQ
Impeller DIA: 12.25”
Speed: 2,000 RPM

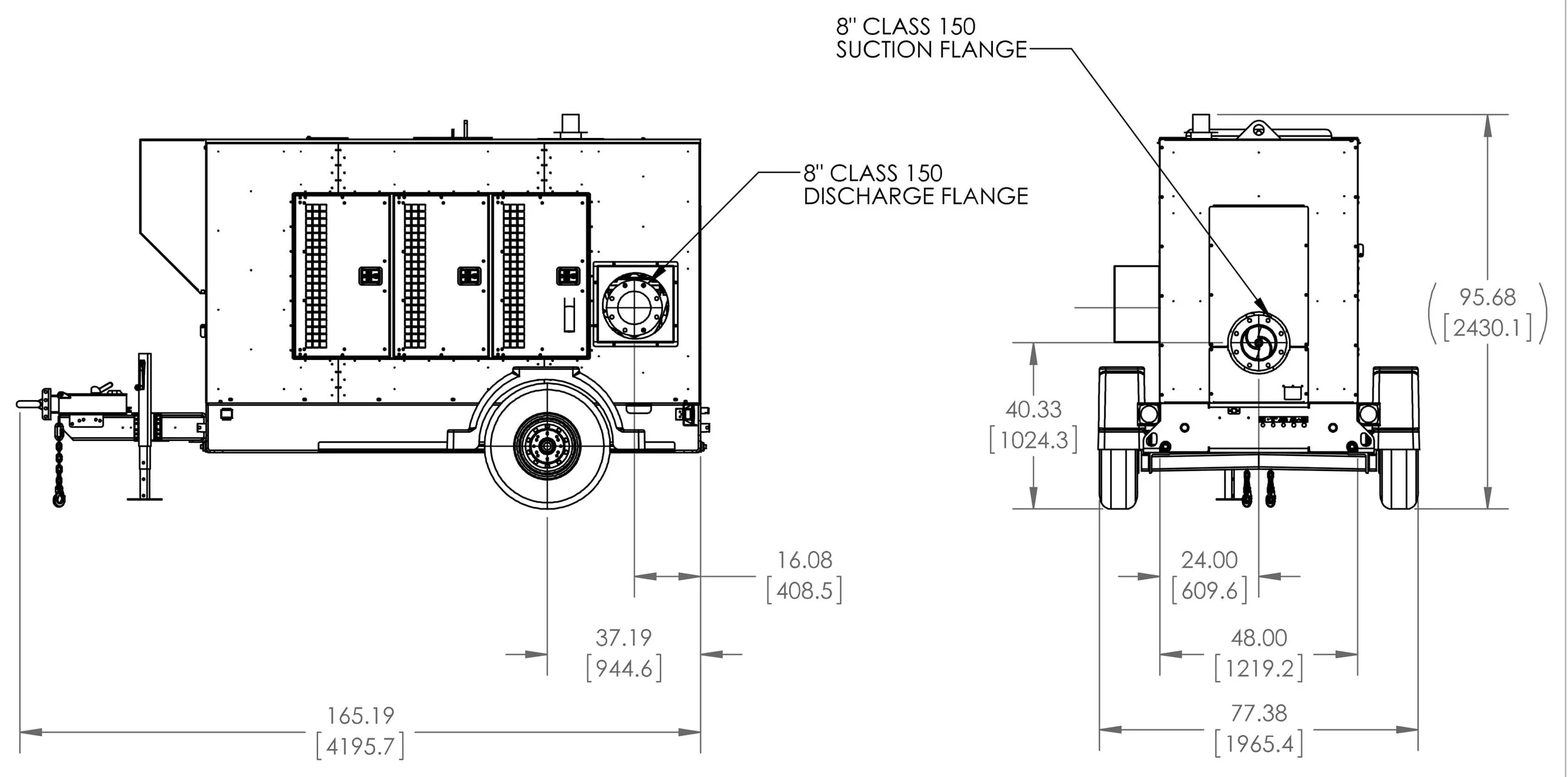

Mechanical Dimensions
WEIGHT
Dry: 6,420 LBS
Full: 7,380 LBS
